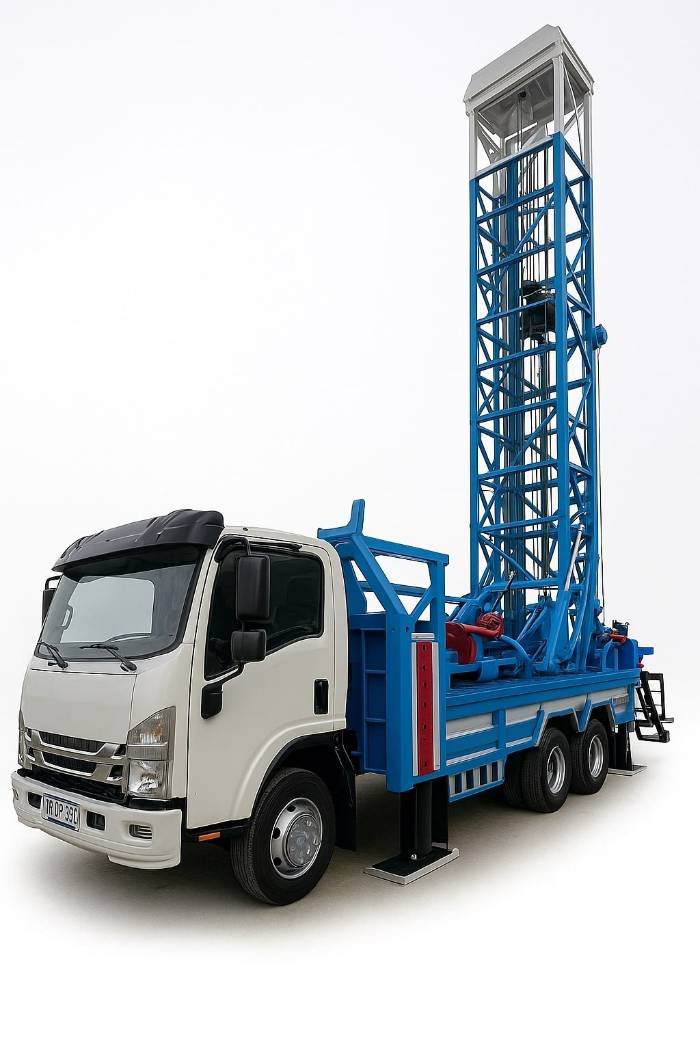

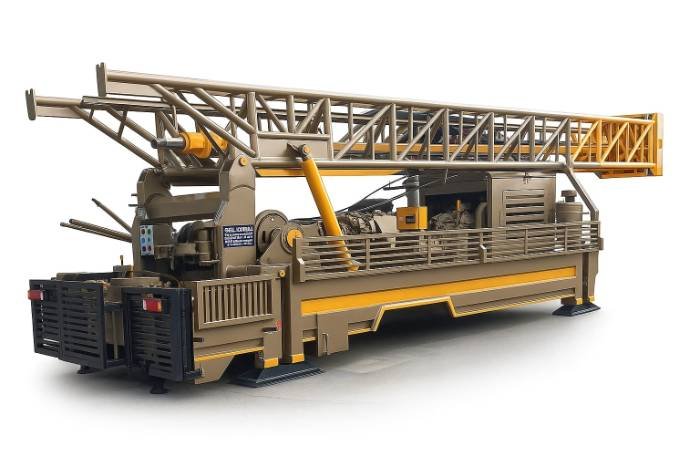

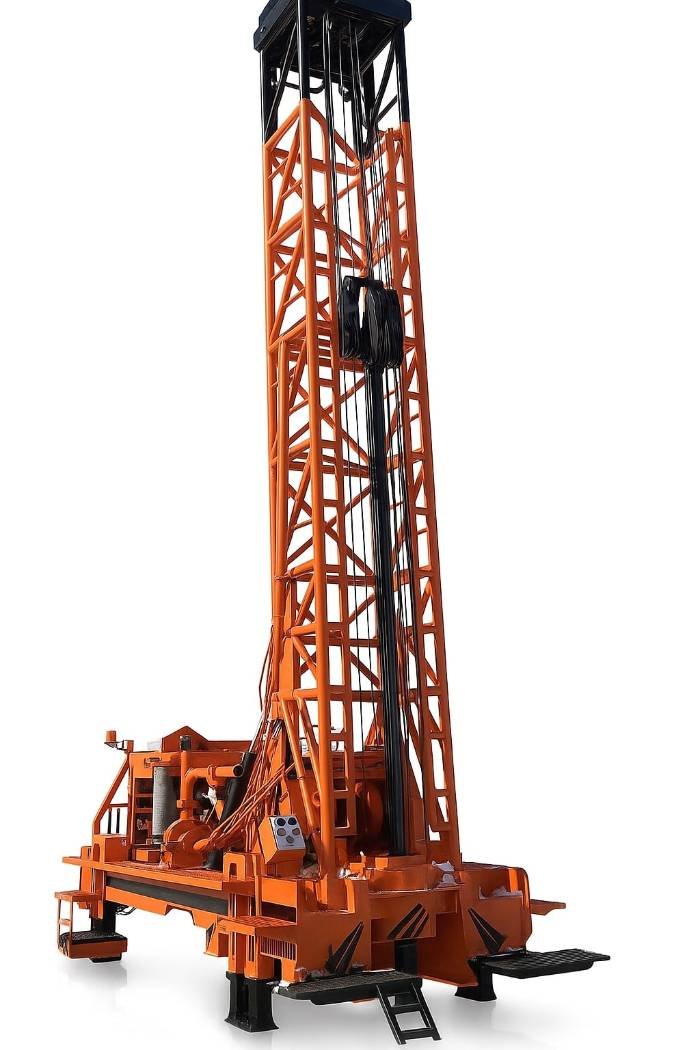

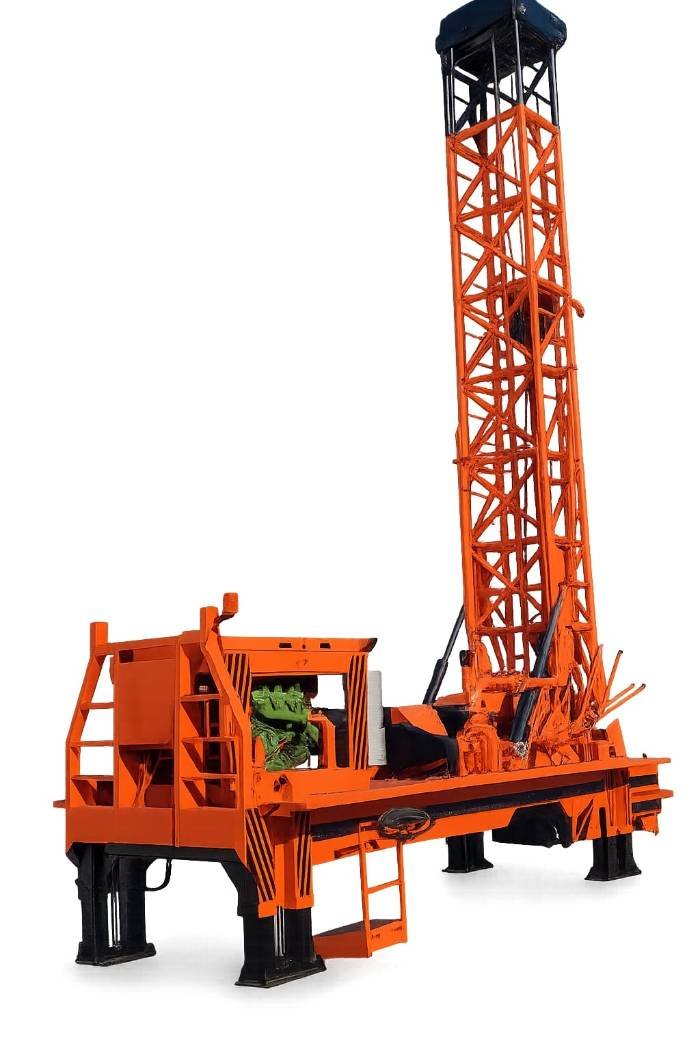

Drilling / Water Drilling Rigs / 300 meters depth Drilling Rig
| Category | Specification |
|---|---|
| Deck Engine | 1 × Mercedes V6 Diesel Engine (220 HP, 6 inline cylinders) Brand optional |
| Mast | Constructed with 3” × 6 mm steel pipes Total length: 10.50 meters |
| Powertrain System | 1 × Transfer case driven by 1” 4-row chain 2 × Transmissions |
| Draw-Works | 4 × 4, 8-speed system |
| Rotary Table | Hydraulic Rotary Table with skid system Distance: 700 mm Ø Inner: 200 mm Ø Outer: 500 mm |
| Swivel | Small Type |
| Centrifugal Pump | 1 × Small type #1 4” suction line |
| Rig Balance System | 4 × Double hydraulic stabilizing legs |
| Water Pipes | 2.5” R2 pipes Quadrant suction system |
| Pulleys | 2 × Kelly Bar Pulleys 2 × Service Pulleys |
| Kelly Bar | German-made, quadrangular Outer Diameter: 120 mm Thickness: 16 mm |
| Auxiliary Parts | • 1 × Drill Sub (for 8½” & 12½” rods) • 1 × Hoisting Plug • 1 × Pipe Vise • 1 × Drill Pipe Slip |
