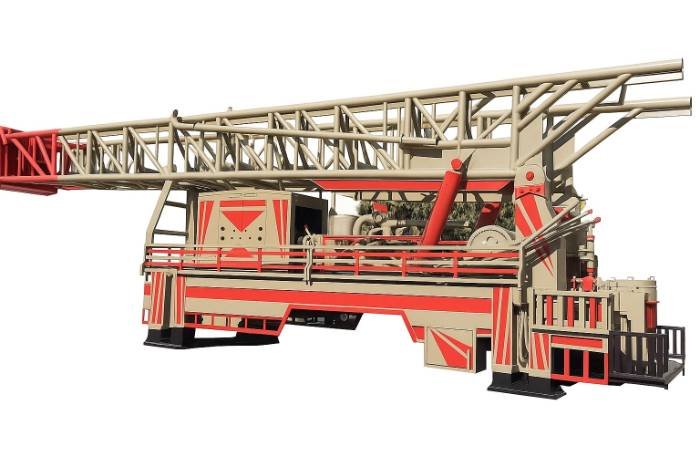

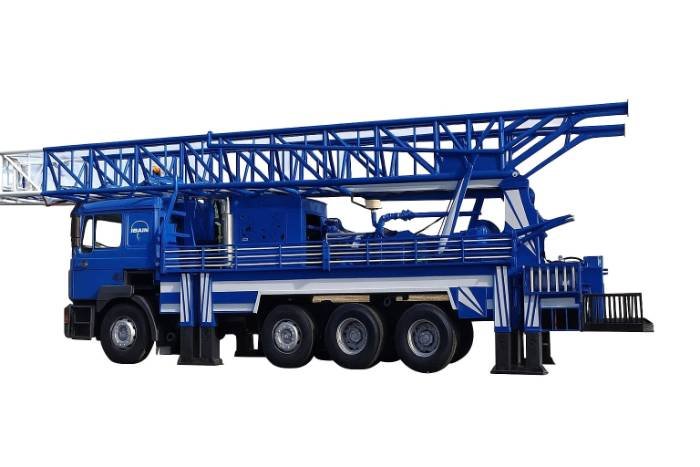

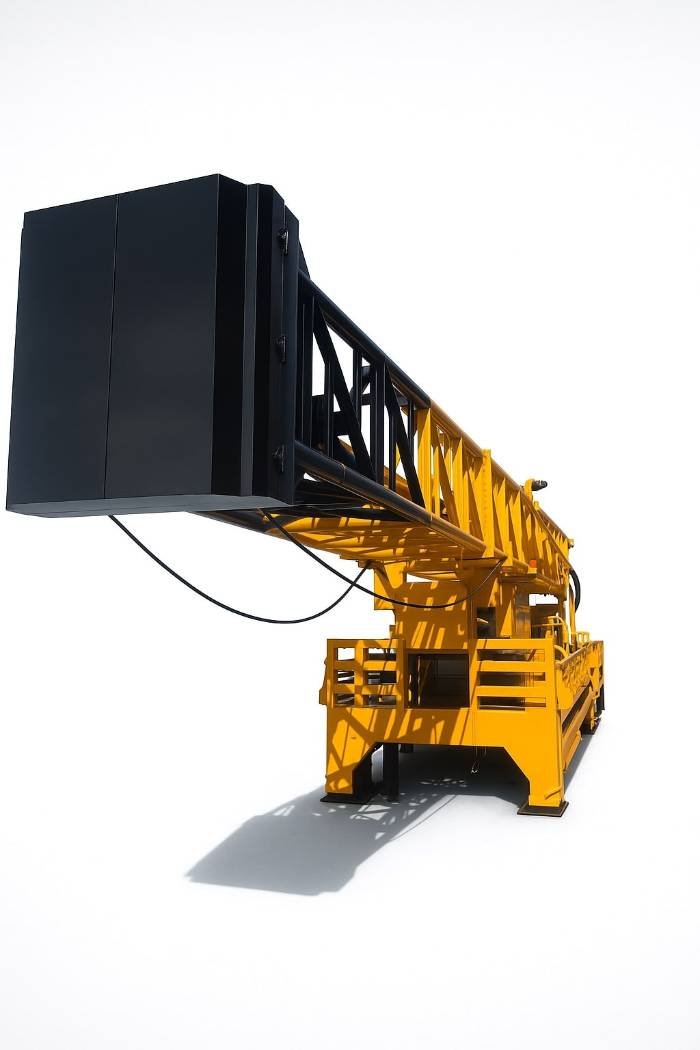

Drilling / Water Drilling Rigs / 500 meters depth Drilling Rig
| Category | Specification |
|---|---|
| Deck Engine | 1 × MAN 26.281 Diesel Engine Brand optional |
| Mast | Constructed with 4” × 6 mm steel pipes Total length: 14.50 meters |
| Powertrain System | 1 × Transfer case driven by 1” 4-row chain 2 × Transmissions |
| Draw-Works | 5 × 5, 10-Big type |
| Rotary Table | Hydraulic Rotary Table with skid system Hydraulic Slide System Distance: 700 mm Ø Inner: 230 mm Ø Outer: 600 mm |
| Swivel | Big Type |
| Centrifugal Pump | 1 × Small type #2 4” suction line |
| Rig Balance System | 4 × Double hydraulic stabilizing legs |
| Water Pipes | 3” R2 pipes Quadrant suction system |
| Pulleys | 4 × Kelly Bar Pulleys 2 × Service Pulleys |
| Kelly Bar | German-made, quadrangular Outer Diameter: 120–130 mm Thickness: 16 mm |
| Auxiliary Parts | • 1 × Drill Sub (for 8½” & 12½” rods) • 1 × Hoisting Plug • 1 × Pipe Vise • 1 × Drill Pipe Slip |
