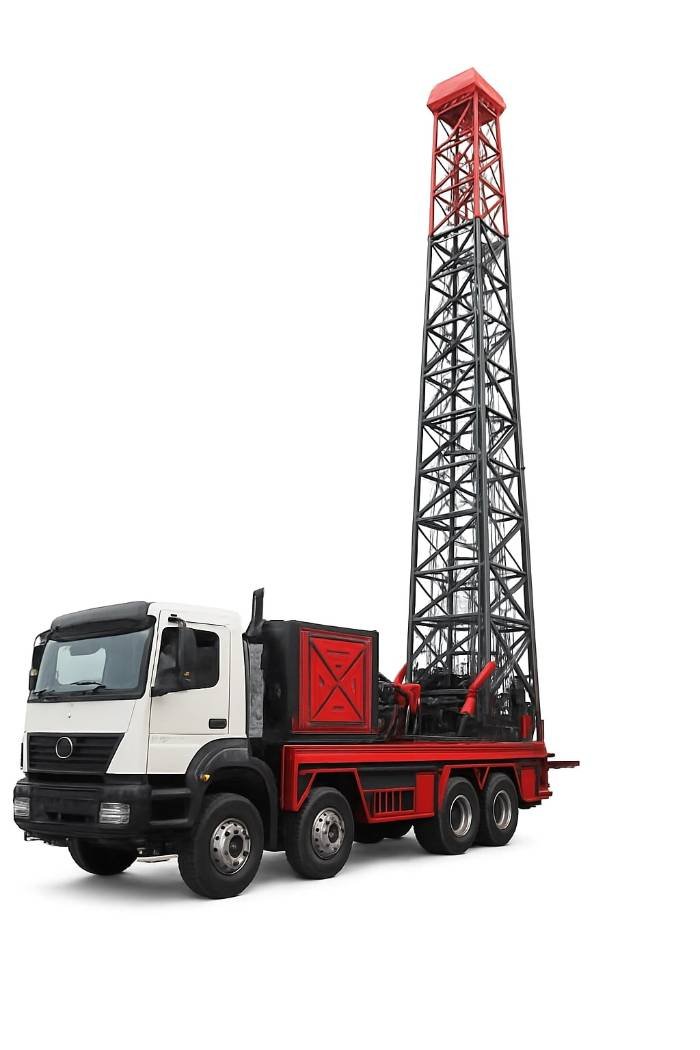

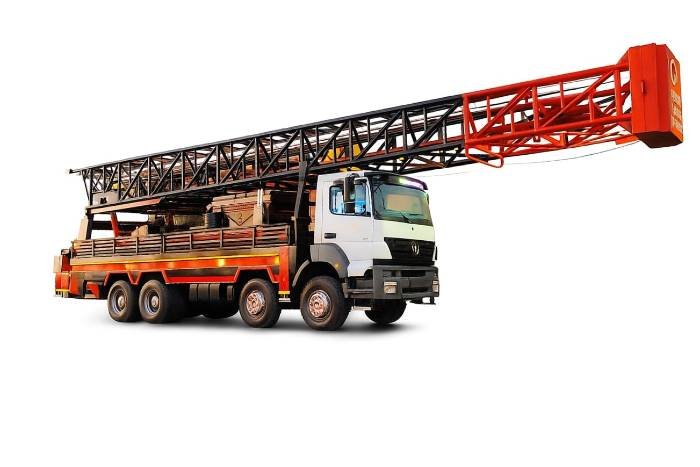

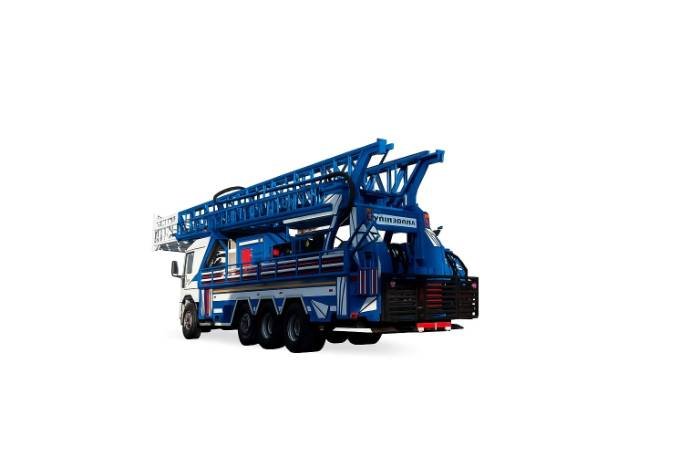

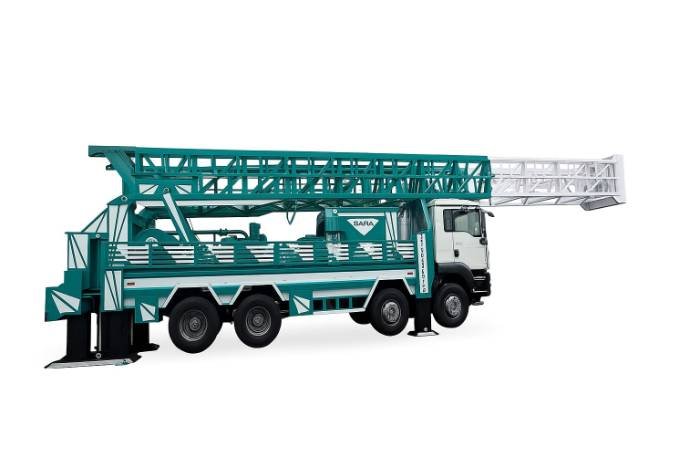

Drilling / Water Drilling Rigs / 800 meters depth Drilling Rig
| Category | Specification |
|---|---|
| Deck Engine | 1 × MAN 361 Diesel Engine Brand optional |
| Mast | Constructed with 4” × 6 mm steel pipes Total length: 14.50 m |
| Powertrain System | 1 × Transfer case driven by 1” 4-row chain 2 × Transmissions |
| Draw-Works | 5 × 5, 10 – Braked & Big type |
| Rotary Table | Hydraulic Rotary Table with skid system Hydraulic Slide System Distance: 850 mm Ø Inner: 240 mm Ø Outer: 650 mm |
| Swivel | Big Type |
| Centrifugal Pump | 1 × Big type #3 4” suction line |
| Rig Balance System | 4 × Double hydraulic stabilizing legs |
| Water Hoses | 3” R2 Quadrant suction system |
| Pulleys | 4 × Kelly Bar Pulleys 3 × Service Pulleys |
| Kelly Bar | USA-made, quadrangular Outer Diameter: 130–140 mm |
| Mud Pump | 6 × 8 |
| Auxiliary Parts | • 1 × Drill Sub (for 8½” & 12½” rods) • 1 × Hoisting Plug • 1 × Pipe Vise • 1 × Drill Pipe Slip |
